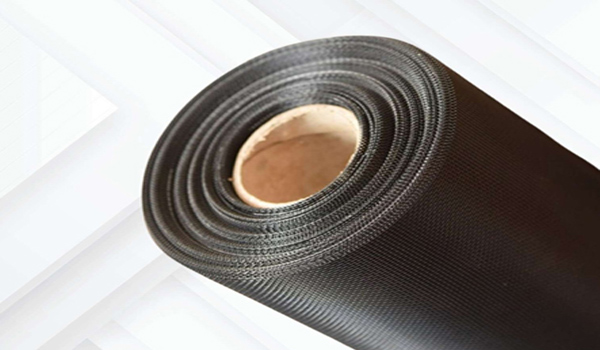

SS 304 Natural Wire Mesh

SS 304 Natural Finish Wire Mesh refers to a mesh product woven or welded from Grade 304 Stainless Steel wire that has not been subjected to additional surface treatments like coating, galvanizing, or painting. Its appearance is the intrinsic, unadulterated "natural" metallic sheen of the stainless steel, often referred to as a Mill Finish or Bright Annealed Finish depending on the production process. This material is widely considered the industry standard for general-purpose stainless steel wire mesh due to its excellent balance of properties and cost-effectiveness.

Core Material: Stainless Steel 304

The performance of the mesh is entirely reliant on the properties of its base alloy, Grade 304 stainless steel, which is an austenitic (non-magnetic when annealed) chromium-nickel alloy.

Element	Approximate Composition	Function
Chromium (Cr)	18% - 20%	Forms the passive oxide layer that provides intrinsic corrosion resistance (prevents rust).
Nickel (Ni)	8% - 10.5%	Stabilizes the austenitic structure, providing strength, ductility, and excellent workability.
Carbon (C)	Max 0.08%	Controlled low level to minimize sensitization (corrosion near welds).
Iron (Fe)	Balance	The primary metal base.

Key Advantages of Natural Finish SS 304 Mesh

The natural finish highlights the inherent benefits of the 304 alloy without relying on a separate coating:

Intrinsic Corrosion Resistance: The presence of chromium allows the steel to naturally form a thin, protective, self-repairing layer of chromium oxide. This provides excellent resistance to general atmospheric corrosion, fresh water, and most mild chemical and organic acids.

High Strength and Durability: SS 304 offers a high tensile strength (up to 720 MPa for the wire), providing superior durability, impact resistance, and structural integrity compared to non-stainless materials.

Heat Resistance: The mesh can withstand continuous service temperatures up to approximately 925 Deg C (1700Deg F) without significant scaling or loss of properties, making it suitable for high-temperature filtration or screening.10

Hygienic Properties: The smooth, non-porous metallic surface is easy to clean and sanitize. This characteristic is critical for applications in the food, beverage, and pharmaceutical industries, where sanitation standards are rigorous.

Non-Coated Integrity: Since there is no coating to chip, scratch, or degrade, the mesh maintains its intended aperture size and flow properties reliably over its long lifespan.

the SS 304 Natural Finish Wire Mesh is a robust, reliable, and cost-effective choice for any application that requires inherent corrosion resistance, high mechanical strength, and a clean, durable metallic finish, making it a cornerstone material in diverse industries globally.
